GRINDING PRECISION
Capacity

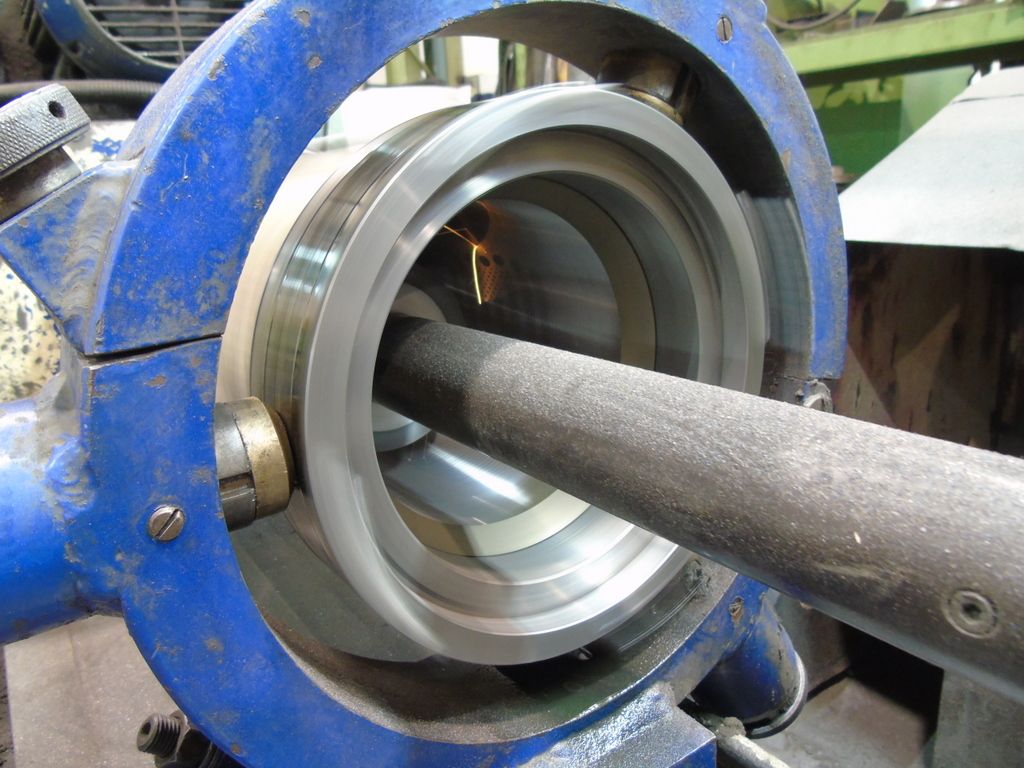

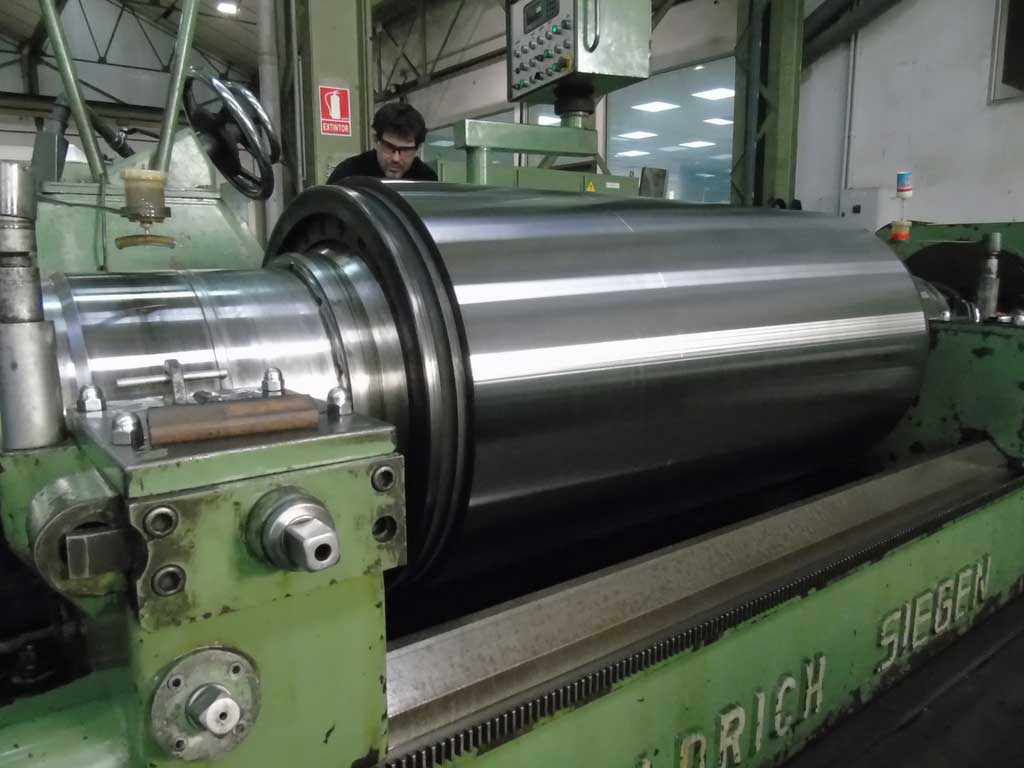

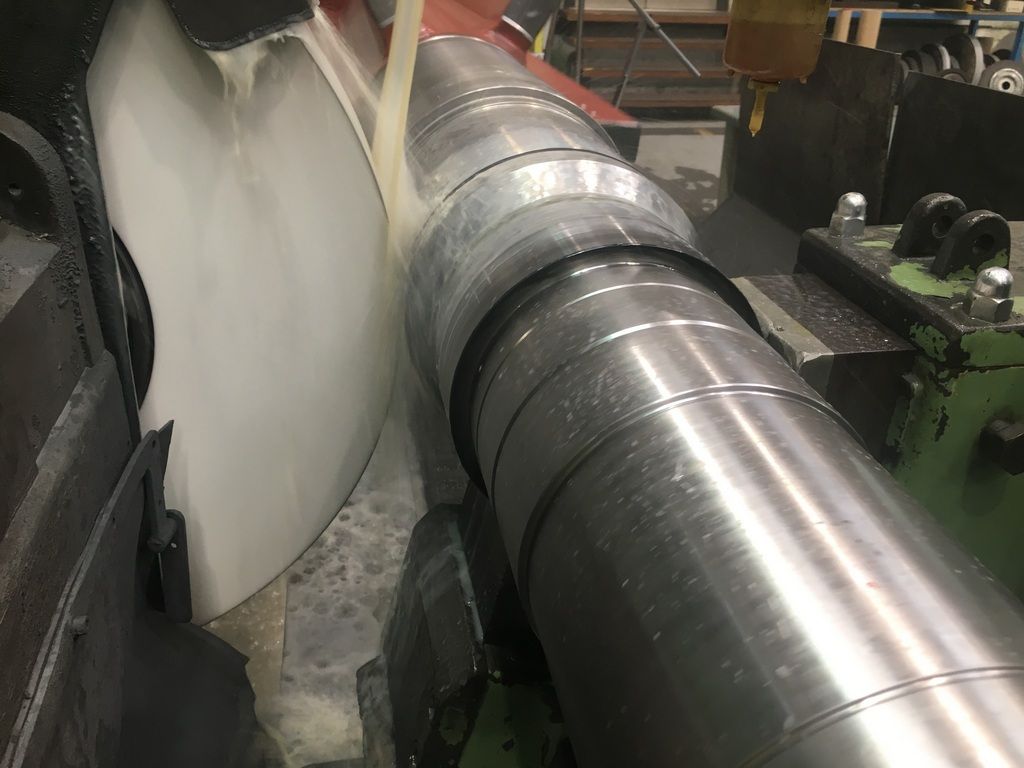

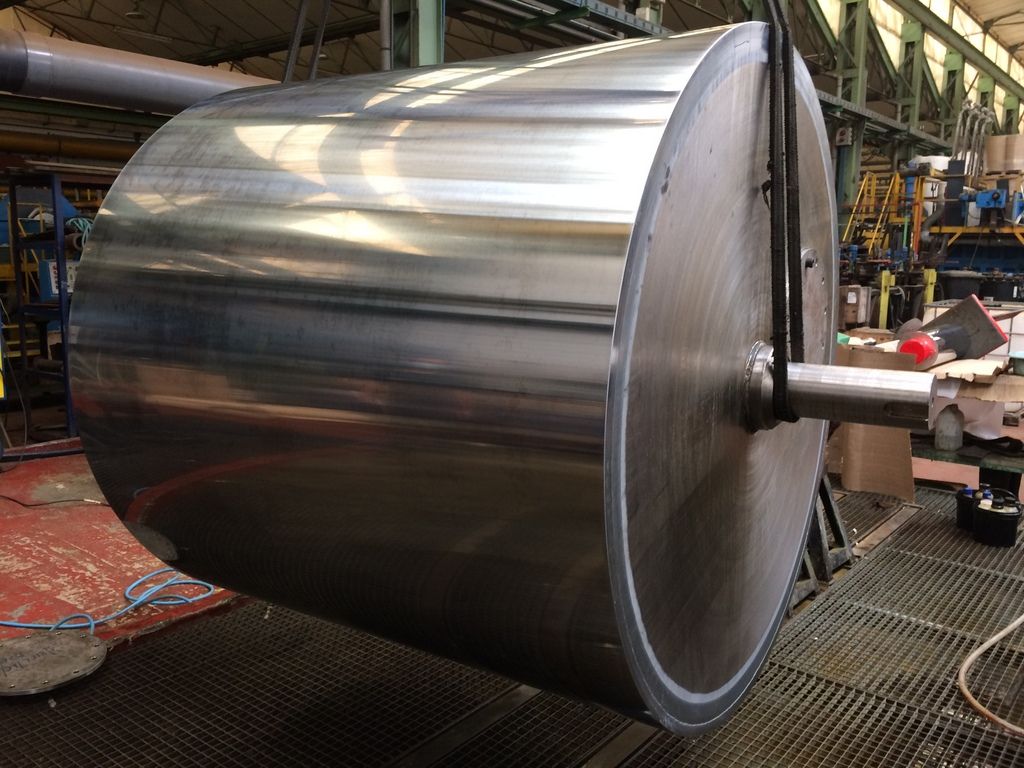

Vila Electroquimica has expertise in turning and precision grinding all kinds of shafts, rollers, cylinders and all rotating equipment to very fine tolerances. Our grinding machinery can handle anything from small shafts up to large calendar rolls and chill rolls which are up to 20 tonnes in weight and up to 1000 mm diameter x 5800 mm long.
| MACHINES | MAX WEIGHT | MAX DIAMETER | MAX LENGTH |
|---|---|---|---|
| GRINDING | 20 T | 1000 mm | 6100 mm |
| MILLING | 10 T | 3700x2500x1100 mm | |
| BALANCED | 6 T | 1500 mm | 9000 mm |
| TURNING | 8 T | 1500 mm | 7000 mm |
| BRUSHER | 10 T | 4000x1200x1000 mm | |
| DEGASSING | 20 T | 1100 mm | 2100 mm |
In addition to the usual finishes on steel can grind and turn copper, chrome, nickel and even rubber.
Our products are critically scrutinised and approved by quality inspectors before being passed for delivery.
Rollers that are crowned are utilized by many industrial manufacturers. These companies can be found in the paper, film and foil converting industry.
Vila Electroquimica has the capability to carry out roll crowning according to specifications.
- Bearing seat according to drawing.
- Bombage/Crowing according to drawing.
- Cylindrical shape (μm)
